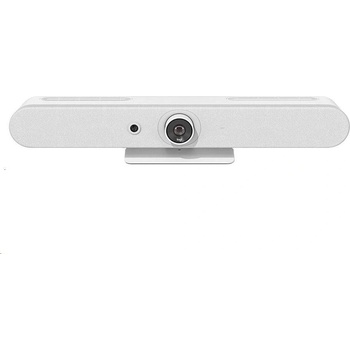

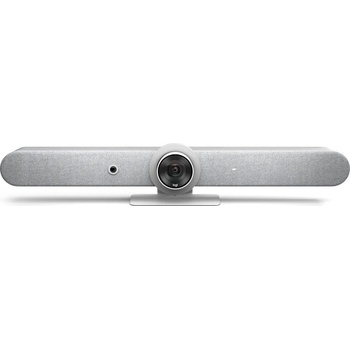

Logitech RALLY BAR

Rally Bar

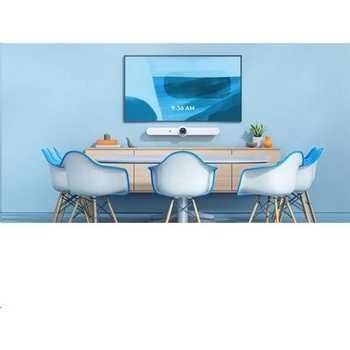

All-in-one video bar for midsize rooms

TECHNICAL SPECIFICATION

Dimensions (H x W x D) 164 x 910 x 130.5 mm

Weight 7.08 kg

Package Contents

• Rally Bar
• Power supply
• AC power cord
• HDMI cable
• USB cable

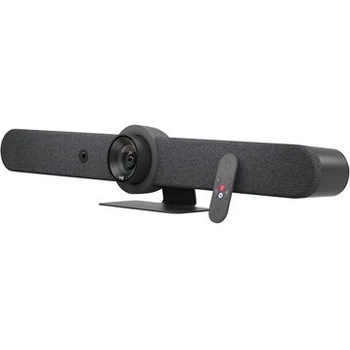

• Remote control
• Lens caps for main camera and AI Viewfinder
• User documentation

Warranty Information

Standard: 2-year limited hardware warranty included Extended: Additional one-year extended warranty available at the time of hardware purchase. Contact your reseller for availability.

Camera

Resolution 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps

Pan

Motorized ±25°

Tilt

Motorized ±15°

Zoom 15X HD zoom (5X optical, 3X digital available with upcoming software update)

Diagonal field of view (dFoV) 90°

Horizontal Field of View 82.1°

Vertical Field of View 52.2°

Total Room Coverage 132.1° Horizontal x 82.2° Vertical

Speakers

Drivers 2 x 70 mm

Output 90dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at 1 meter

Sensitivity 90+/-3dB SPL at 1W, 1 meter

THD 1kHz < 2%

Speaker Sampling Rate 48 kHz

Microphones

Frequency response 90Hz – 16kHz

Sensitivity >-36dBFS +/-1 dB @ 1Pa

Microphone data rate output 48 kHz

Pickup Range 4.5 m

Beamforming Elements

Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams

Audio processing

AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)

Noise suppression

AI filter

Add-on Mics

Supports up to 3 additional Rally Mic Pods for larger conference rooms

RightSense™ Technologies

RightLight™

Renders natural skin tones for each participant.

RightSight

Maintains persistent room awareness and detects human figures to auto-frame participants.

RightSound

Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo

Interfaces

HDMI Out 2

HDMI In 1

USB 3.0 3 x Type A 1 x Type C

Network 10/100/1G Ethernet

WiFi 802.11a/b/g/n/ac (MIMO)

External Mic Input

Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)

Remote Control

Bluetooth Low Energy

Power & Cables

Power supply

Auto-sensing

Operating Voltage/Power 100-240V, 19V, 4.74A

Power Supply Dimensions 127 x 51 x 30 mm

DC Cable 1.5 m

AC Cable 1 m

HDMI 1.4 Cable 2 m

USB A to USB C 3.0 Cable 2.2 m

Environmental

Operating Temperature 0 to 40°C

Storage Temperature -40 to 70 °C

Humidity 10 to 95%

BTU/hr 57 idle, 64 in meeting

Security

Full Disk Encryption

AES-128

Data Encryption

Symmetric Keys, PKI

Device Identity

Protected by device attestation

Device Access

Authenticated using API

Key Protection

Arm TrustZone, RPMP

Certifications & Compatibility

Certifications

Zoom™ Certified, Certified for Microsoft Teams as a USB device. Contact the manufacturer for additional information on pending and granted certifications.

Compatibility

Plug and play USB connectivity with virtually any video conferencing application

Appliance mode

Supports compatible video conferencing software in appliance mode (no PC required), including Zoom Rooms Appliances.

Certification pending for Microsoft Teams Rooms on Android and additional video conferencing platforms.

General Specifications

Built-in Components 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform

Enclosure

All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference

Device Management

Logitech Sync

Displays Supported 2

Display Resolution

Up to 4K

Accessories

Mounts

Wall Mount for Video Bars, TV Mount for Video Bars

Audio

Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable

Connectivity

Logitech Strong USB (10 m, 25 m, 45 m)

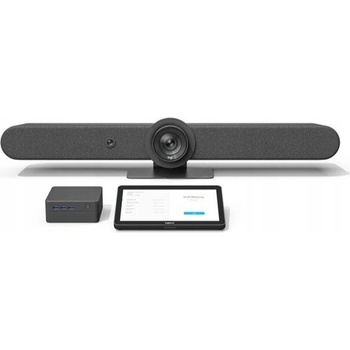

Touch Controller

Logitech Tap
